l Power Consumption | 120-200W |
Voltage Range | 100 - 277 V |
Power Factor | ≥0.95 |
Colour Temp. (CCT) | 3000 - 6500 K |
LED Chip Luminous Efficiency Lm/ W | ≥170 |
Weight | 8.8 KG |

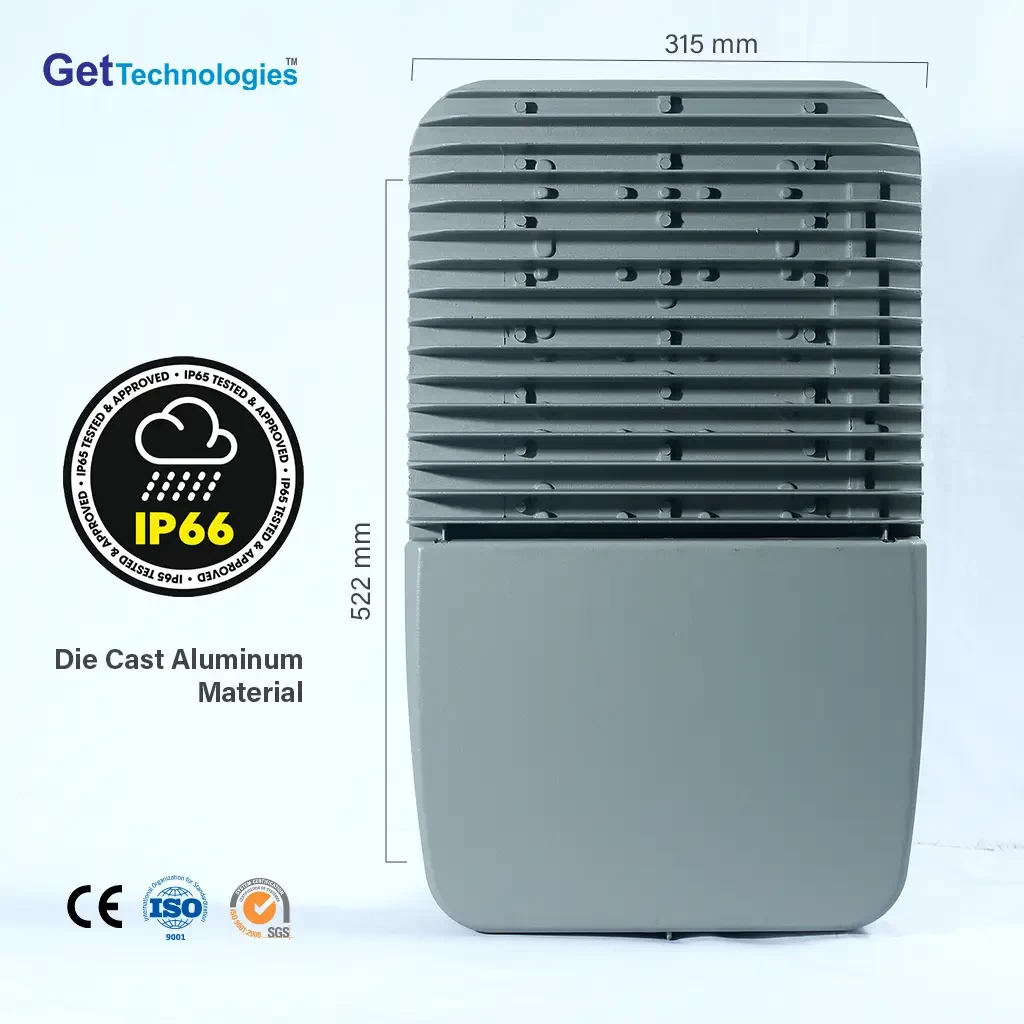

Housing | Aluminum Die cast housing with ambient heat dissipation design with IP66 and IK10 rating |
Finish | Grey painted housing |
Light Source | High efficiency globally branded LEDs with Ra≥70 Nichia/Cree/ Samsung/Lumileds |
Optics | IESNA Type I, II, III optics as per requirement using globally branded lenses |
Control gear | Built-in high efficient electronic drivers-Meanwell Get Technologies , Phillips , Osram with Power Factor≥0.95, THD≤15%, Surge Protection≥10KVA, Plug & Play detachable connectors |
Mounting & Maintenance | 48 to 65mm pole slide entry. Toolless opening of tray and control gear compartment |
Useful Life | >100000 hours @70 % lumen maintenance |
Applications | Highways & Expressways, Main Roads, Parking Areas Commercial, Industrial and Residential streets. |
