GTSTDL
Inhouse product
Wattage | 240W,480W,720W,960W,1440W |
LED driver | Constant Current LED Driver |
Power requirement | 220-240V 50/60HZ |
Operational Voltage Range | 100- 277VAC |
Power factor | >0.95 (nominal power) |
Surge Protection | 10KV |
LED Light source | Cree (USA), Nichia (Japan) |
Luminous Efficacy (Lumens) | 36000 ,72000, 108000, 144000 ,216000 |
Beam Angle | 10°,25°, 45°, 60°, 90° |
Color rendering Index | >90 Ra |
Color Temperature | CW -5700K/ NW -4000K/ W W -3000K ±500K |
Lifetime | 50,000 hours (70% lumen maintenance @ Ta = 35°C) |
Working temperature | - 40 °C < Ta = 55°C |
Relative humidity | Up to 95%RH |

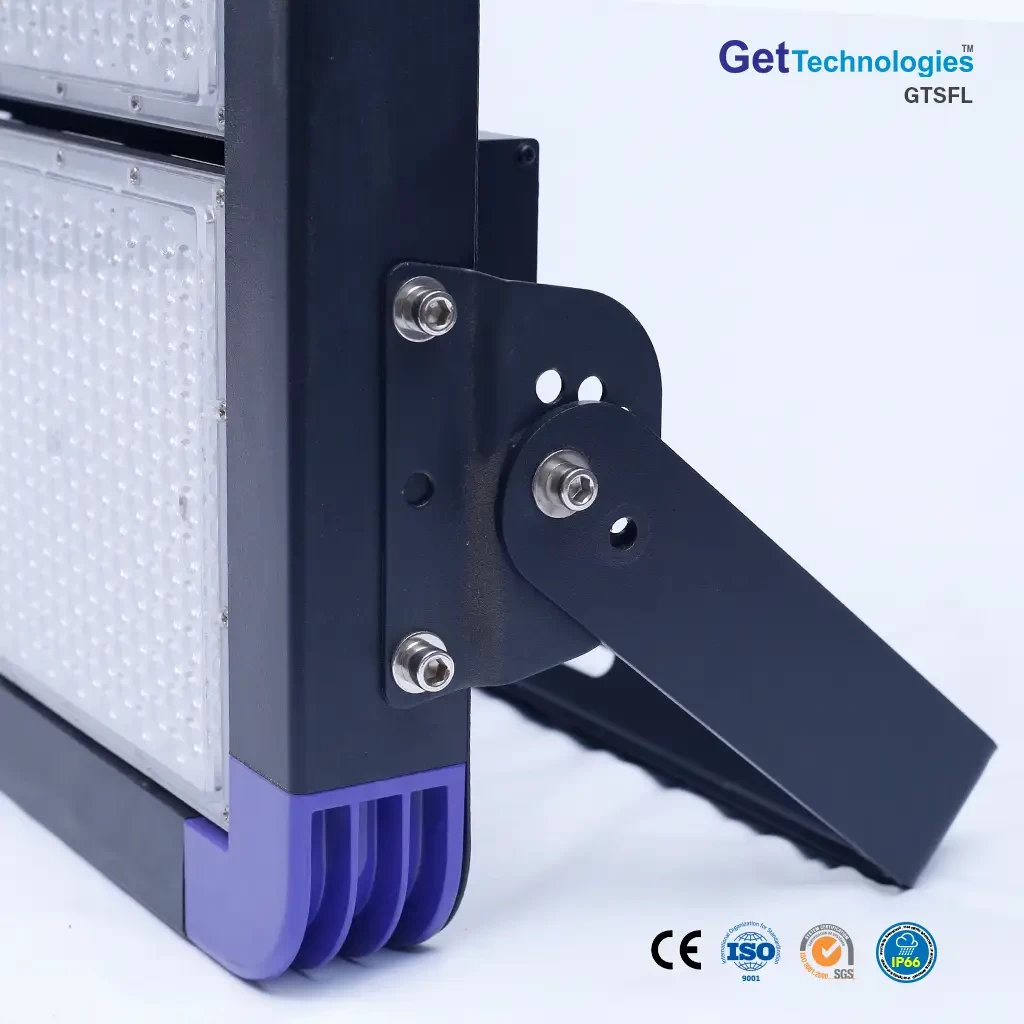

Installation | Stadium Light Installation System |
Housing material | Cold Forged Aluminum Alloy |
Gasket material | Heat resistant silicone rubber |
Optic | Polycarbonate Lens |
Finishing | Corrosion resistant, polyester powder coating |
Weight (Kg) | 6.3 ,11.8 ,16.6 ,28.3 ,35.6 |
